Hyperbaric chambers

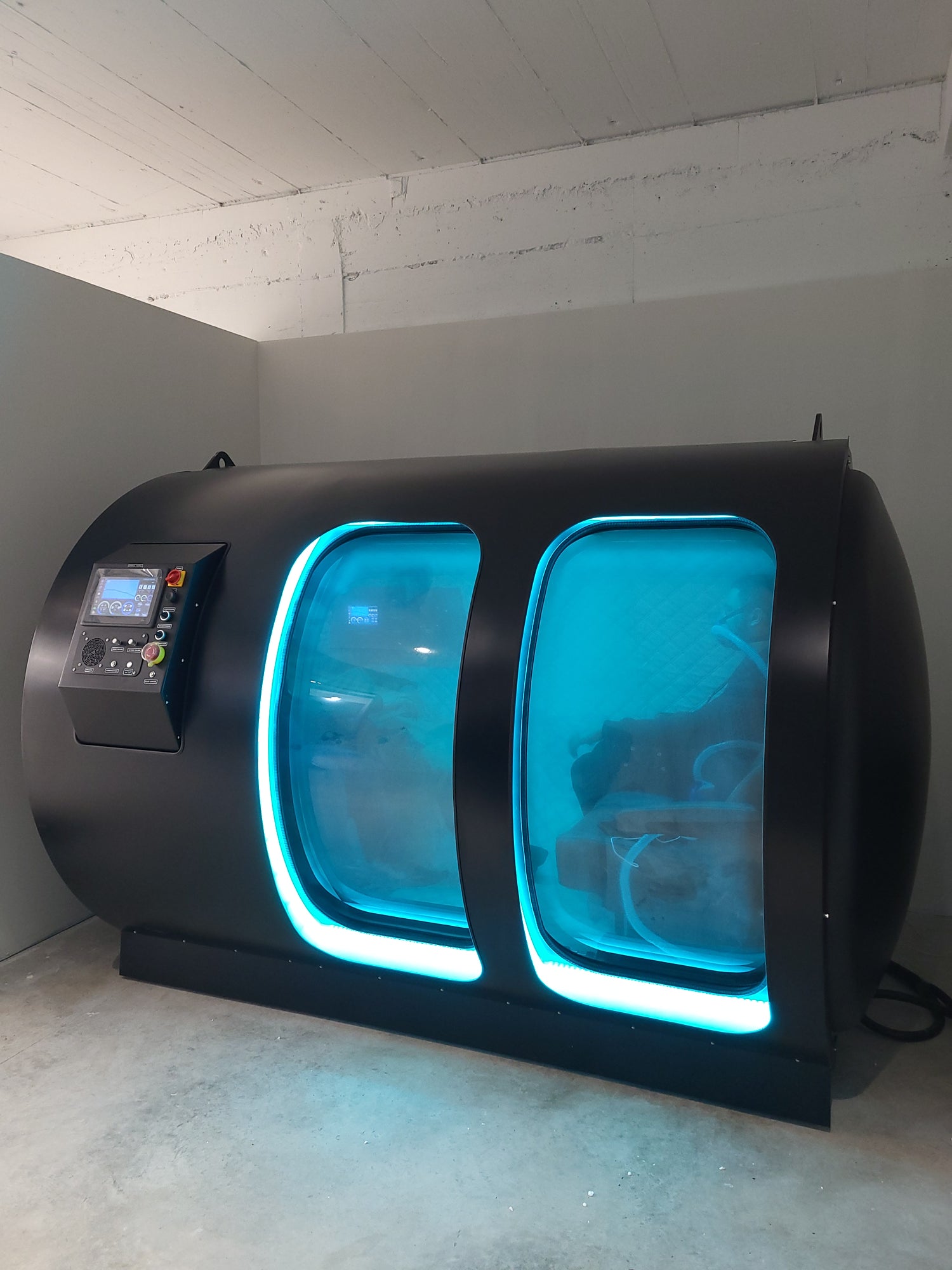

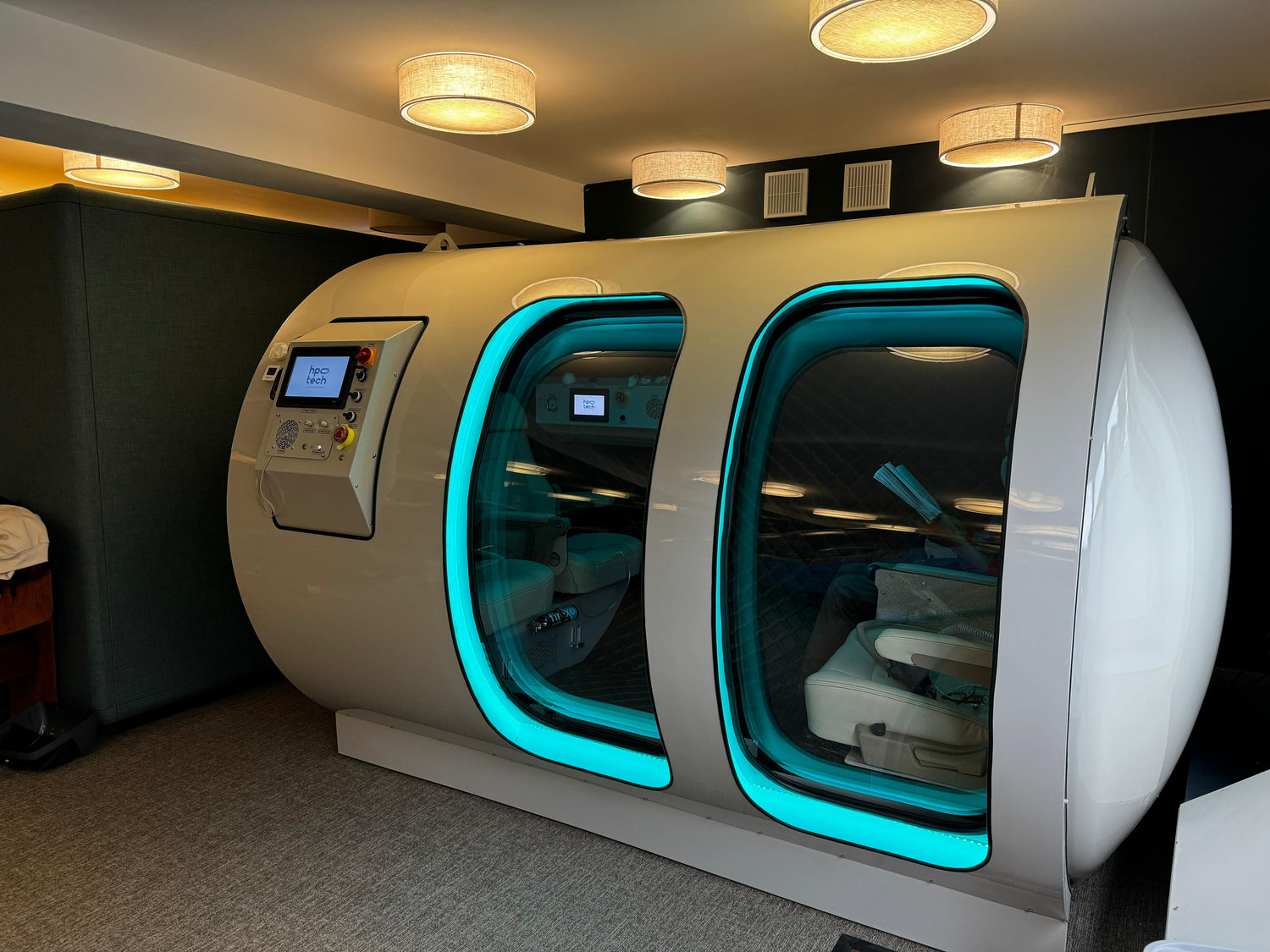

The OxyHelp OxyLife C is a premium multiplace hyperbaric chamber engineered for 2 to 5 users at once. Designed with aerospace-grade aluminum and a transparent acrylic door, it combines safety, comfort, and a modern look that fits into professional wellness, rehab, and sports recovery facilities.

Like all OxyHelp chambers, the OxyLife C uses touchscreen controls, mirrored commands inside and outside, and a dual interphone system for maximum comfort and safety. Each chamber supports therapy times of up to 90 minutes and ensures stable pressure control with excellent ventilation for user comfort.

Available in three modular sizes, the OxyLife C adapts perfectly to your business needs.

Contact us for a tailored quotation based on your configuration and location.

Sizes & Dimensions

2-person chamber

• Internal volume: 5,460 L

• Weight: 450 kg

• Length: 2,132 mm

• Diameter: 1,924 mm

3–4-person chamber

• Internal volume: 7,740 L

• Weight: 615 kg

• Length: 2,892 mm

• Diameter: 1,924 mm

4–5-person chamber

• Internal volume: 9,400 L

• Weight: 780 kg

• Length: 3,652 mm

• Diameter: 1,924 mm

Maximum user weight: 135 kg per person

Benefits

• Multiplace design – 2 to 5 users per session

• Transparent acrylic door for comfort and natural light

• Touchscreen controls with mirrored inside/outside commands

• Dual interphone system for communication during therapy

• Therapy sessions up to 90 minutes

• Stable pressure control and high ventilation

• Compact modular design compared to other multiplace chambers

• Custom exterior colors and branding options available

Technical Specifications

• Model: OxyHelp OxyLife C (Multiplace)

• Sizes: 2, 3–4, or 4–5 users

• Diameter: 1,924 mm

• Lengths: 2,132 / 2,892 / 3,652 mm

• Internal volumes: 5,460 / 7,740 / 9,400 L

• Weights: 450 / 615 / 780 kg

• Max user weight: 135 kg per person

• Operating pressure: 1.5 ATA (50 kPa)

• Tested pressure: up to 2.0–2.5 ATA (100–150 kPa)

• Therapy time: up to 90 minutes

• Materials: Aerospace-grade aluminum + acrylic door

• Controls: Touchscreen, mirrored inside/outside

• Communication: Dual interphone system

• Power supply: 220 V / 50 Hz

What’s Included

• OxyHelp OxyLife C chamber (2, 3–4, or 4–5 person model)

• Transparent acrylic access door

• External touchscreen control panel

• Mirrored internal controls for clients

• Dual interphone communication system (inside + outside)

• Automatic pressure management system with safety valves

• Integrated ventilation system for stable airflow

• Timer & session management software

• Documentation and starter accessories

Pricing

Pricing for the OxyHelp OxyLife C multiplace chamber is available on request.

Final cost depends on:

• Selected capacity (2, 3–4, or 4–5 users)

• Customization options (colors, branding, multimedia)

• Installation and delivery requirements

Customization & Options

• Modular sizes for 2, 3–4, or 4–5 users

• Exterior finish: standard white or custom RAL colors

• Branding customization options

Optional Equipment

Enhance your hyperbaric oxygen chamber experience with our range of optional equipment:

• Oxygen concentrator – AirSep, 10 l/min, 138 kPa output. Made in the USA.

• Air conditioning system – Water-based cooler by SMC, type HRSE012-A23-T. Made in Japan.

• Audio/Video system – Immersive entertainment setup for user comfort.

Warranty & Service

When you purchase a hyperbaric chamber from OxyHelp, you’re not just buying a product; you’re investing in peace of mind.

• Warranty – 2 years manufacturer warranty, with the option to extend by 3 years (up to 5 years total).

• Service – Fastest technical intervention times in the industry. Service within max. 10 working days worldwide.

• Confidence – Comprehensive warranty and dedicated support team ensure long-term reliability.

The OxyHelp Experience

Hyperbaric Oxygen Therapy is as natural as breathing. It is one of the most efficient natural methods to increase both physical and cognitive performance.

With OxyHelp, you embrace the natural healing powers of oxygen therapy. Each session boosts your body’s self-healing capabilities, making every breath a step towards health, vitality, and longevity.

The OxyHelp OxyLife I is a premium monoplace hyperbaric chamber built with aerospace-grade aluminum and a transparent acrylic door that provides natural light and comfort. Designed for one user, it delivers a safe, relaxing, and efficient hyperbaric oxygen therapy experience.

The chamber features touchscreen controls, mirrored commands inside and outside, and a dual interphone system to guarantee full communication and control throughout the session. Automatic pressure management and integrated ventilation provide consistent airflow and stable comfort for up to 90-minute therapy sessions (with continuous operation possible up to 180 minutes).

Available in two diameters (80 cm and 90 cm), OxyLife I offers more interior space than most chambers in its class, while maintaining a compact footprint that fits easily in wellness studios, spas, beauty clinics, and rehabilitation centers.

Sizes & Dimensions

OxyLife I / 80

• Diameter: 800 mm

• Length: 2,300 mm

• Height: 950 mm

• Internal volume: 1,150 L

• Weight: 130 kg

OxyLife I / 90

• Diameter: 900 mm

• Length: 2,300 mm

• Height: 1,050 mm

• Internal volume: 1,450 L

• Weight: 150 kg

Maximum user weight: 135 kg

Benefits

• Compact and elegant – easy to install in any facility

• Transparent acrylic door for natural light and comfort

• Touchscreen operation with mirrored inside/outside commands

• Dual interphone communication system

• Stable pressure control and high ventilation for consistent comfort

• Therapy time up to 90 minutes; continuous operation up to 180 minutes

• Two size options (80 cm or 90 cm diameter)

• Custom exterior colors available (RAL palette)

Technical Specifications

• Model: OxyHelp OxyLife I (Monoplace)

• Sizes: 80 cm or 90 cm diameter

• Length: 2,300 mm

• Volume: 1,150 L or 1,450 L

• Weight: 130 kg or 150 kg

• Maximum user weight: 135 kg

• Operating pressure: 1.5 ATA (50 kPa)

• Tested pressure: up to 2.0–2.5 ATA (100–150 kPa)

• Therapy time: up to 90 minutes

• Continuous operation: up to 180 minutes

• Materials: Aerospace-grade aluminum + acrylic door

• Controls: Touchscreen, mirrored inside/outside

• Communication: Dual interphone system

• Power supply: 220 V / 50 Hz

What’s Included

• OxyHelp OxyLife I chamber (80 cm or 90 cm version)

• Transparent acrylic access door

• External touchscreen control panel

• Mirrored internal control interface for the user

• Dual interphone communication system (inside + outside)

• Automatic pressure management system with safety valves

• Integrated ventilation system for stable airflow

• Timer & session management software

• Documentation and starter accessories

Pricing

Pricing for the OxyHelp OxyLife I monoplace chamber is available on request.

Final cost depends on:

• Selected size (80 cm or 90 cm diameter)

• Customization options (colors, branding, multimedia)

• Installation and delivery requirements

Contact us for a tailored quotation based on your configuration and location.

Customization & Options

• Available in 80 cm or 90 cm diameter

• Exterior finish: standard white or custom RAL colors

• Branding customization options

Optional Equipment

Enhance your hyperbaric oxygen chamber experience with our range of optional equipment:

• Oxygen concentrator – AirSep, 10 l/min, 138 kPa output. Made in the USA.

• Air conditioning system – Water-based cooler by SMC, type HRSE012-A23-T. Made in Japan.

• Audio/Video system – Immersive entertainment setup for user comfort.

Warranty & Service

When you purchase a hyperbaric chamber from OxyHelp, you’re not just buying a product; you’re investing in peace of mind.

• Warranty – 2 years manufacturer warranty, with the option to extend by 3 years (up to 5 years total).

• Service – Fastest technical intervention times in the industry. Service within max. 10 working days worldwide.

• Confidence – Comprehensive warranty and dedicated support team ensure long-term reliability.

The OxyHelp Experience

Hyperbaric Oxygen Therapy is as natural as breathing. It is one of the most efficient natural methods to increase both physical and cognitive performance.

With OxyHelp, you embrace the natural healing powers of oxygen therapy. Each session boosts your body’s self-healing capabilities, making every breath a step towards health, vitality, and longevity.

The TITAN Hyperbaric Chamber represents the pinnacle of high-capacity HBOT design. With operating pressures between 3.0 and 6.0 ATA, it provides an advanced range of hyperbaric applications under strict safety standards.

Available in two forms — TITAN Square with a futuristic cube-style design, or TITAN Omega with a cylindrical shape — this system adapts to different facility requirements while maintaining the same engineering, automation, and comfort features.

Multiple seating configurations allow TITAN to accommodate from 4+2 to 12+2 seats. Redundant safety systems, ergonomic design, and optional entertainment upgrades ensure reliable and comfortable use in large-scale operations.

Key Benefits

• High-capacity multiplace chamber – from 4+2 up to 12+2 seats

• Operating pressure: 3.0–6.0 ATA – wide therapeutic range

• Two design options: Square (modern) or Omega (cylindrical)

• Heavy-duty steel construction

• Full PLC automation with manual backup controls

• Redundant compressors, air tanks, and fire suppression systems

• Real-time chamber monitoring

• Ergonomic seating with comfort and entertainment options

Technical Specifications

• Capacity: Configurations from 4+2 up to 12+2 persons

• Operating pressure: 3.0–6.0 ATA

• Weight: 9,000–13,000 kg (depending on configuration)

• Exterior designs: Square or Omega

• Material: Heavy-duty steel, industrial-grade construction

• Ventilation rate: 125–400 LPM

• Emergency decompression system included

• Full external dimensions available on request

What’s Included

• TITAN Hyperbaric Chamber (Square or Omega design)

• Air generating units (3 units)

• Air stock tanks (4 units)

• Air dryer and filtration system (carbon, oil, microparticle filters)

• Fire suppression system (5 units)

• Air cooler (1,500 W)

• Control panel with automation and manual operation

• PLC-based automation software

• Internal & external control stations

• Built-in breathing system (BIBS) masks and regulators for all users

• Ergonomic eco-leather seating (capacity-dependent)

• Emergency stop and manual decompression valves

• Observation cameras with live feed

• UV-C disinfection system

• Intercom communication

Optional Upgrades

• Acrylic observation windows

• Extended patient monitoring systems (EEG, ECG, TCOM, BP)

• CO₂ sensor

• Luxury seating upgrades (eco-leather, Alcantara, Maybach-style)

• Entertainment systems (large-screen TV, tablets, LED ambient lighting)

• Branding applications (logos, exterior, interior finishes)

• Expanded automation tools (session logging, reporting)

• Additional fire safety integrations

Customization & Branding

• Exterior paint customization

• Interior finishes in multiple tones

• Branded details and logos available

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Redundant safety systems for pressure, oxygen, and fire protection

• Real-time monitoring of pressure, oxygen levels, temperature, humidity, and treatment duration

• Emergency decompression systems

• Intercom and camera systems for continuous communication

• UV-C disinfection and automated ventilation

Pricing

Pricing for the TITAN Hyperbaric Chamber is available on request.

Final cost depends on:

• Selected capacity (4+2 to 12+2 seats)

• Exterior design (Square or Omega)

• Customization and installation requirements

Contact us for a tailored quotation based on your facility and configuration.

Why Choose TITAN?

The TITAN Hyperbaric Chamber is a large-scale, professional solution offering unmatched scalability, safety, and customization. With multiple capacity options, two exterior designs, and a therapeutic range up to 6.0 ATA, it delivers reliable, high-performance HBOT supported by robust engineering and modern comfort features.

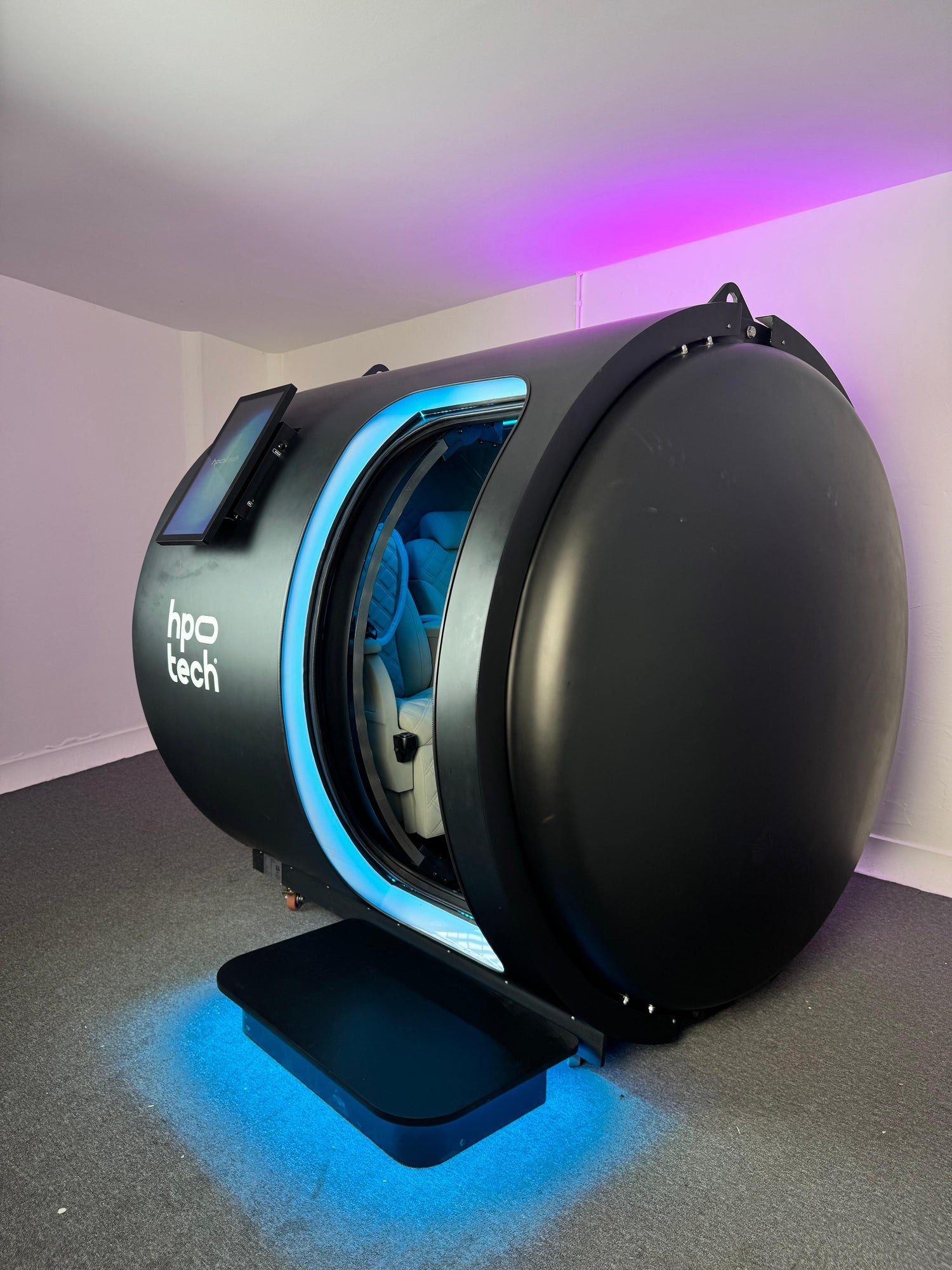

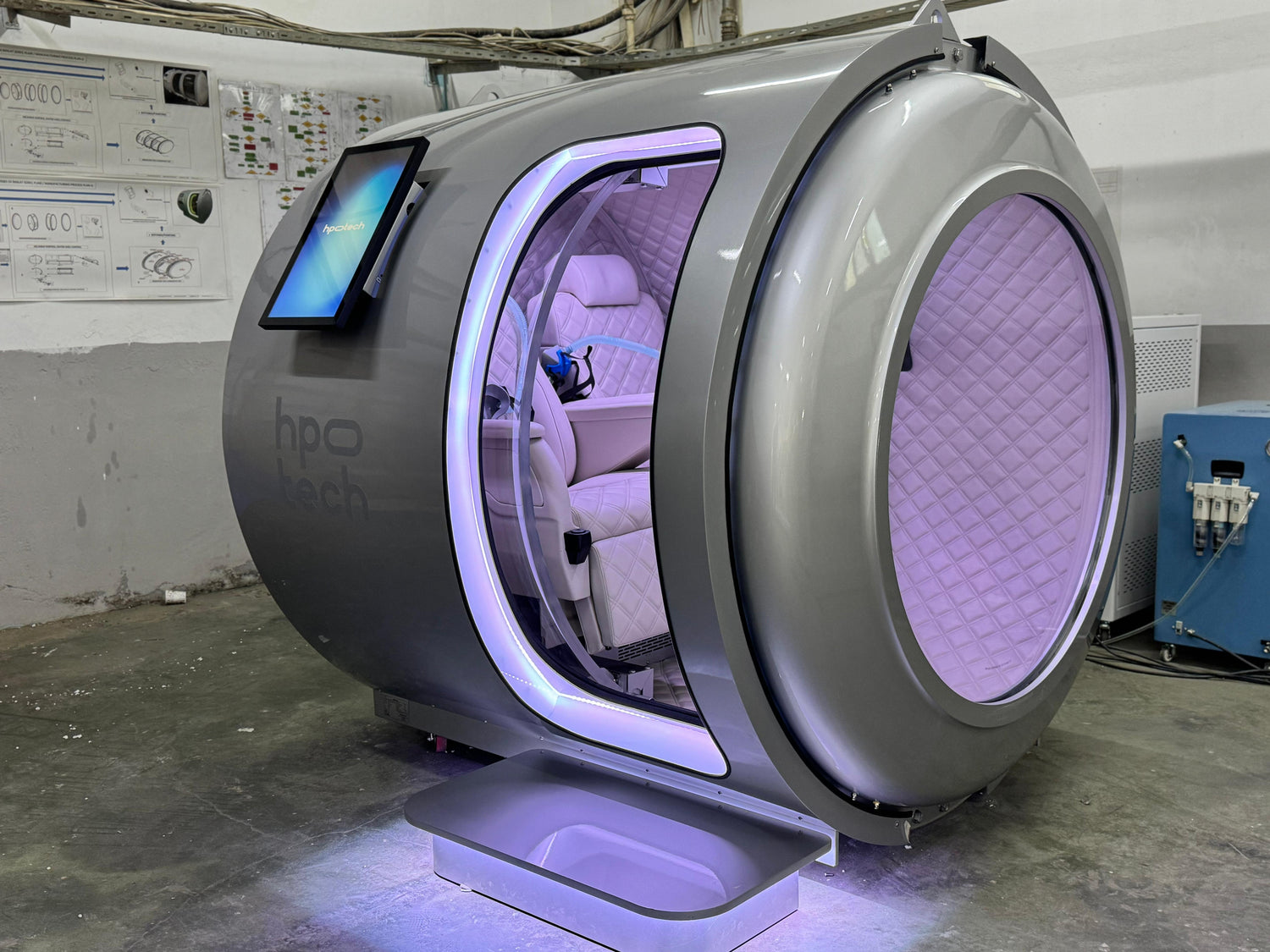

The ZEUGMA Hyperbaric Chamber is a modern monoplace HBOT system for single-user treatments. Compact, lightweight, and easy to install, it delivers reliable therapeutic results at 2.0–2.4 ATA. With panoramic windows, ergonomic seating, and advanced automation, ZEUGMA combines effective oxygen therapy with safety and comfort.

Key Benefits

• Single-user monoplace chamber (1 seat)

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• Compact design for clinics, wellness centers, and private use

• Panoramic acrylic windows reduce confinement feeling

• Ergonomic eco-leather seat

• Automation system with PLC-based control

• Certified to international safety standards

Technical Specifications

• Capacity: 1 person

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• External dimensions: 1344 mm (L) × 1987 mm (W) × 1858 mm (H)

• Internal length: 1620 mm

• Internal volume: 1.9 m³

• Material: Aerospace aluminum, cylindrical monoplace design

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• ZEUGMA Hyperbaric Chamber (1 seat monoplace)

• 1 Oxygen concentrator (90–93% purity, 1–20 LPM flow)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Internal & external control panels

• Ergonomic eco-leather seat

• Standard panoramic acrylic windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury seat upgrade

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

ZEUGMA has been designed to maximize user comfort while maintaining clinical reliability. Large acrylic windows create a bright, open space. Ergonomic seating supports circulation and posture. Customers can select exterior paint colors, interior finishes, and branded details to match their facility.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose ZEUGMA?

The ZEUGMA Hyperbaric Chamber delivers proven HBOT performance in a compact, single-user design. With advanced automation, certified safety, and flexible customization options, it is a reliable choice for clinics, wellness facilities, and private users.

Compact. Safe. Effective. Customizable.

The TROJAN Hyperbaric Chamber is a compact and lightweight monoplace HBOT system designed for maximum efficiency in limited spaces. With its slim cylindrical design and medical-grade engineering, TROJAN delivers reliable oxygen therapy at 2.0–2.4 ATA while maintaining ease of installation and user comfort.

Key Benefits

• Single-user monoplace chamber (1 seat)

• Operating pressure: 2.0–2.4 ATA

• Weight: 200–230 kg (ultra-compact)

• Slim cylindrical design for small facilities

• Ergonomic eco-leather seating

• Panoramic acrylic window

• Certified safety systems

• Easy installation and low maintenance

Technical Specifications

• Capacity: 1 person

• Operating pressure: 2.0–2.4 ATA

• Weight: 200–230 kg

• External dimensions: 2346 mm (L) × 830 mm (W) × 1087 mm (H)

• Internal length: 1800 mm

• Internal volume: 1.0 m³

• Material: Aerospace aluminum, compact cylindrical design

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• TROJAN Hyperbaric Chamber (1 seat monoplace)

• 1 Oxygen concentrator (90–93% purity, 1–20 LPM flow)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Internal & external control panels

• Ergonomic eco-leather seat

• Standard acrylic window

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury ergonomic seat upgrade

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

TROJAN is designed for clinics and wellness facilities with limited space but high standards. Despite its compact size, the chamber offers ergonomic seating, customizable finishes, and options for luxury upgrades. Its lightweight construction makes it easy to install and operate, without compromising on safety or performance.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose TROJAN?

The TROJAN Hyperbaric Chamber is one of the most compact and lightweight HBOT systems available, making it ideal for clinics, wellness centers, and private installations where space is limited. With certified safety, reliable performance, and customization options, it offers accessible hyperbaric therapy without compromise.

Compact. Lightweight. Reliable. Customizable.

The PETRA Hyperbaric Chamber is a premium monoplace HBOT system designed with a unique focus on visibility and comfort. Its retractable acrylic front panel and three large panoramic windows eliminate the sense of confinement, creating an open and serene environment. Built with medical-grade materials and equipped with automation, PETRA delivers safe, reliable oxygen therapy at 2.0–2.4 ATA.

Key Benefits

• Single-user monoplace chamber (1 seat)

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• Retractable acrylic front door (30 mm) with pneumatic motor

• Three panoramic windows for maximum visibility

• Ergonomic eco-leather seating

• Wireless software control via tablet or smartphone

• Certified medical-grade safety

Technical Specifications

• Capacity: 1 person

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• External dimensions: 1344 mm (L) × 1987 mm (W) × 1858 mm (H)

• Internal length: 1620 mm

• Internal volume: 1.9 m³

• Material: Aerospace aluminum with retractable acrylic door

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• PETRA Hyperbaric Chamber (1 seat monoplace)

• Retractable acrylic front panel (30 mm)

• 1 Oxygen concentrator (90–93% purity, 1–20 LPM flow)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Wireless operation via tablet or smartphone

• Internal & external control panels

• Ergonomic eco-leather seat

• Standard panoramic acrylic windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury ergonomic seat upgrade

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

PETRA is designed as a Zen space for HBOT. Its retractable door and wide windows maximize visibility, helping users feel safe and relaxed. Ergonomic eco-leather seating supports circulation and comfort, while optional luxury finishes, entertainment, and branding solutions allow each chamber to be tailored to its facility.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose PETRA?

The PETRA Hyperbaric Chamber stands out with its total-visibility design, retractable window system, and wireless controls. Safe, certified, and fully customizable, it is ideal for clinics and wellness centers that want to provide oxygen therapy in a bright, open, and patient-friendly environment.

Total visibility. Safe. Comfortable. Customizable.

The MEDITERRANEAN Hyperbaric Chamber is a multiplace HBOT system built for four users, combining clinical-grade engineering with patient comfort. Spacious, safe, and fully automated, it operates at 2.0–2.4 ATA and provides the internationally recognized therapeutic range for oxygen therapy. With durable aerospace-grade construction and ergonomic seating, the MEDITERRANEAN is ideal for clinics and wellness facilities requiring reliable multi-user treatments.

Key Benefits

• Multiplace chamber for 4 users

• Operating pressure: 2.0–2.4 ATA

• Weight: 1200–1400 kg

• Spacious interior for multiple patients

• Ergonomic eco-leather seats

• Panoramic acrylic windows for comfort

• PLC-based automation and control system

• Certified medical-grade safety

Technical Specifications

• Capacity: 4 persons

• Operating pressure: 2.0–2.4 ATA

• Weight: 1200–1400 kg

• External dimensions: 2926 mm (L) × 1910 mm (W) × 1860 mm (H)

• Internal length: 2550 mm

• Internal volume: 5.8 m³

• Material: Aerospace aluminum, multiplace cylindrical design

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• MEDITERRANEAN Hyperbaric Chamber (4-seat multiplace)

• 4 Oxygen concentrators (90–93% purity, 1–20 LPM flow each)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Internal & external control panels

• Ergonomic eco-leather seats (4 units)

• Standard acrylic observation windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury seating upgrades

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

• Fire safety upgrades (NFPA-compliant systems)

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

The MEDITERRANEAN chamber is designed to treat multiple patients simultaneously without compromising comfort. Spacious seating, panoramic windows, and eco-leather finishes create a calming environment. Facilities can choose upgraded luxury seating, entertainment options, and custom branding to align with their image and patient needs.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose MEDITERRANEAN?

The MEDITERRANEAN Hyperbaric Chamber is a spacious multiplace HBOT solution for four users, operating at 2.0–2.4 ATA. Combining advanced safety, comfort, and customization options, it is an excellent choice for clinics and wellness centers that require reliable group treatments in a certified, modern chamber.

Spacious. Safe. Multi-user. Customizable.

The ATLANTIS Hyperbaric Chamber is a certified multiplace HBOT system designed for two users. With its robust aerospace-grade construction, ergonomic seating, and advanced monitoring, ATLANTIS provides reliable oxygen therapy at 2.0–2.4 ATA. Compact yet spacious, it is ideal for clinics and wellness centers seeking efficiency, safety, and comfort.

Key Benefits

• Multiplace chamber for 2 users

• Operating pressure: 2.0–2.4 ATA

• Weight: 800–900 kg

• External acrylic windows reduce confinement feeling

• Ergonomic eco-leather seats

• Dual oxygen delivery via BIBS masks

• PLC-based automation and control system

• Certified medical-grade safety

Technical Specifications

• Capacity: 2 persons

• Operating pressure: 2.0–2.4 ATA

• Weight: 800–900 kg

• External dimensions: 2151 mm (L) × 2000 mm (W) × 1859 mm (H)

• Internal length: 1800 mm

• Internal volume: 3.8 m³

• Material: Aerospace aluminum, multiplace cylindrical design

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• ATLANTIS Hyperbaric Chamber (2-seat multiplace)

• 2 Oxygen concentrators (90–93% purity, 1–20 LPM flow each)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Internal & external control panels

• Ergonomic eco-leather seats (2 units)

• Standard acrylic observation windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury seating upgrades

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

• Fire safety upgrades (NFPA-compliant systems)

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

ATLANTIS is designed for dual occupancy without compromising comfort. Ergonomic eco-leather seats, panoramic windows, and customizable finishes make it welcoming for users. Entertainment systems, luxury upholstery, and branding solutions allow facilities to adapt ATLANTIS to their specific needs.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose ATLANTIS?

The ATLANTIS Hyperbaric Chamber is a compact multiplace system designed for two users, offering proven therapeutic performance at 2.0–2.4 ATA. With certified safety, robust engineering, and extensive customization options, ATLANTIS is ideal for clinics and wellness centers that want reliable dual-user HBOT.

Dual capacity. Compact. Safe. Customizable.
