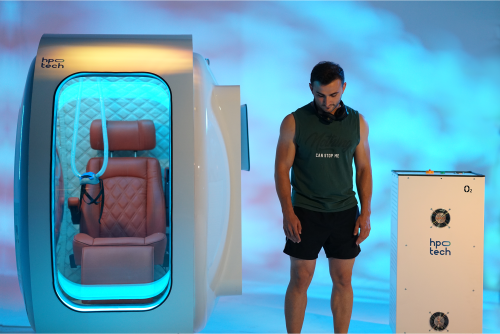

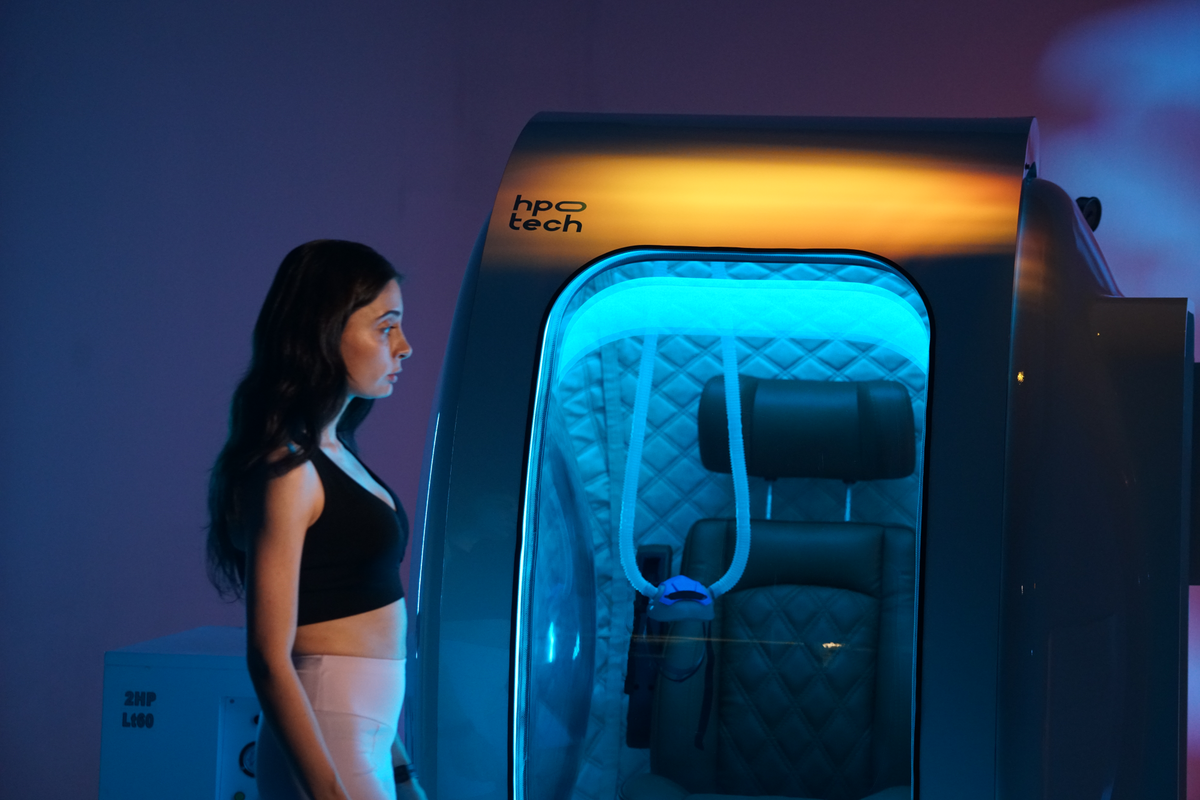

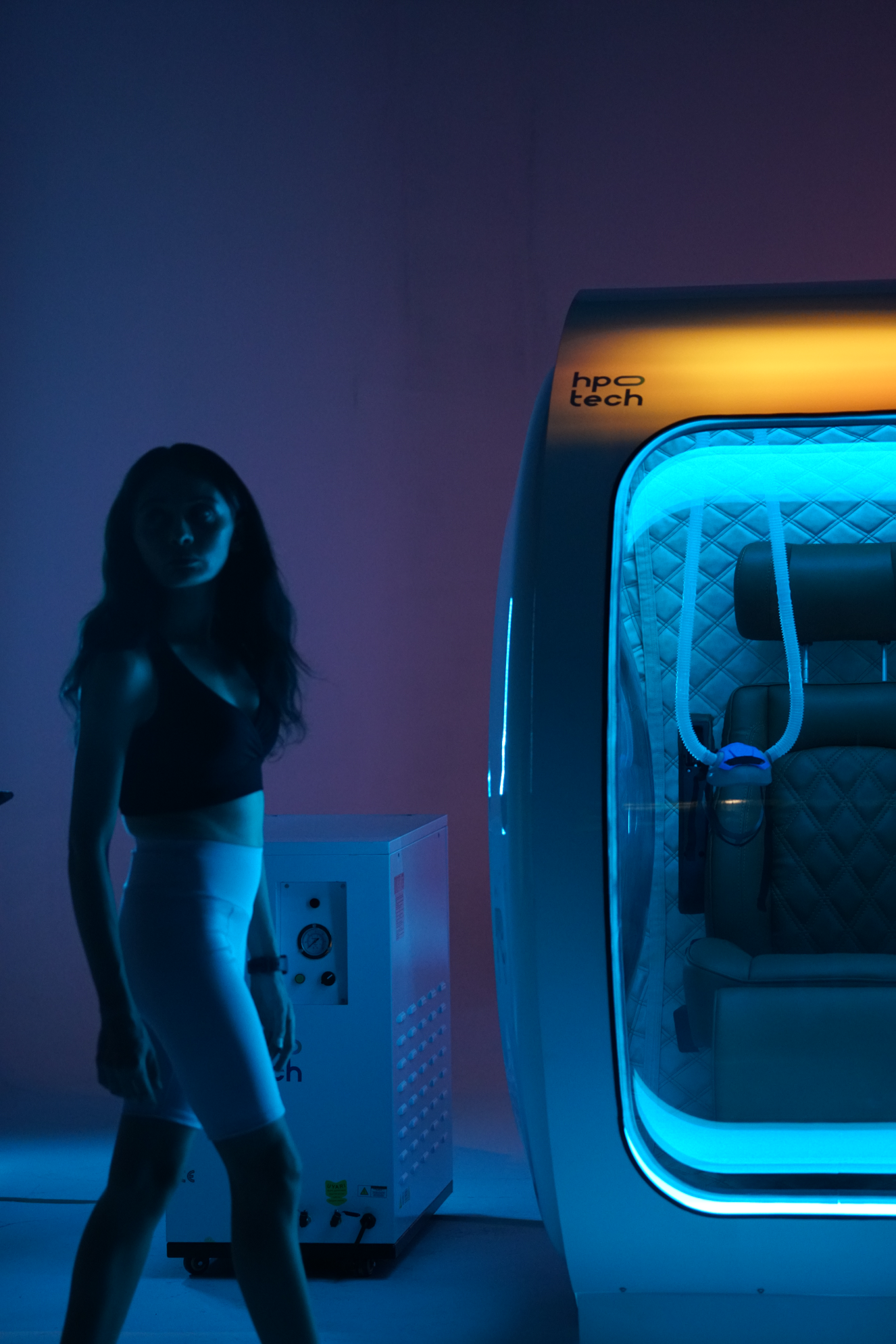

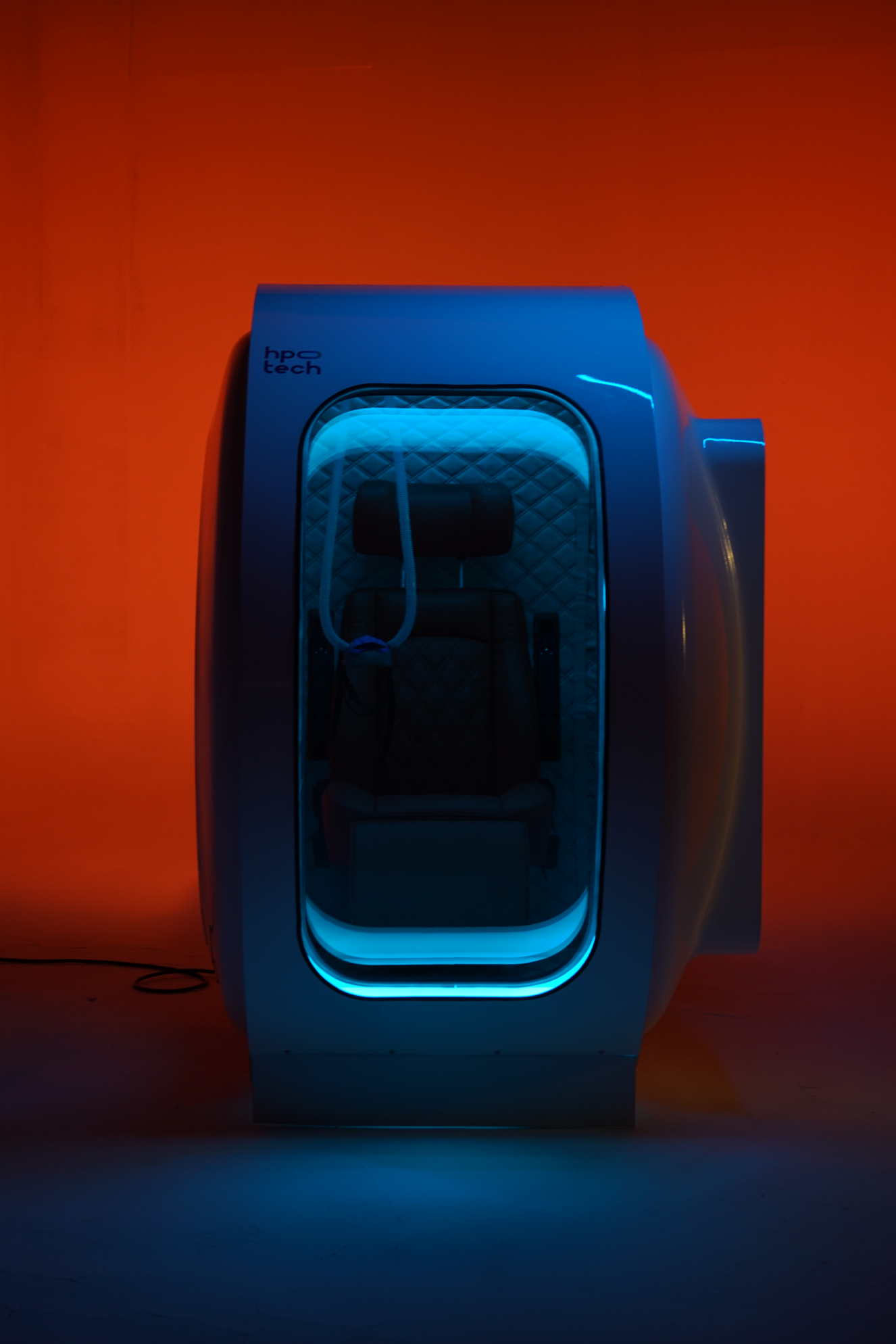

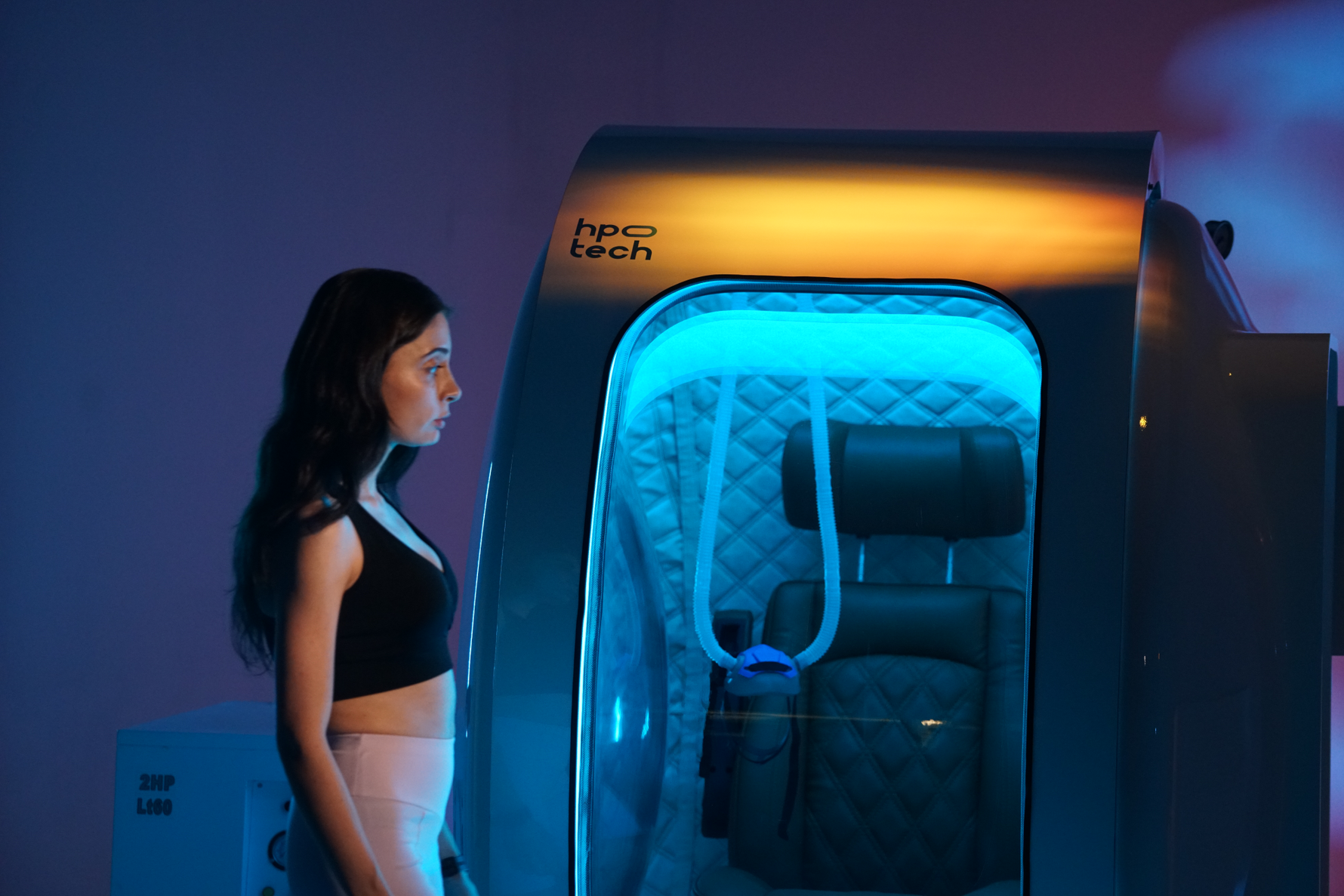

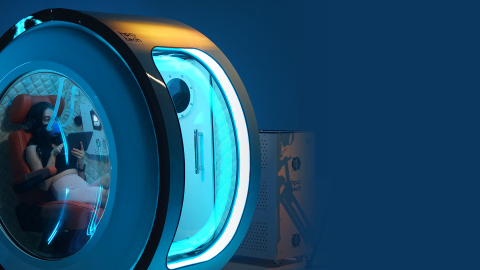

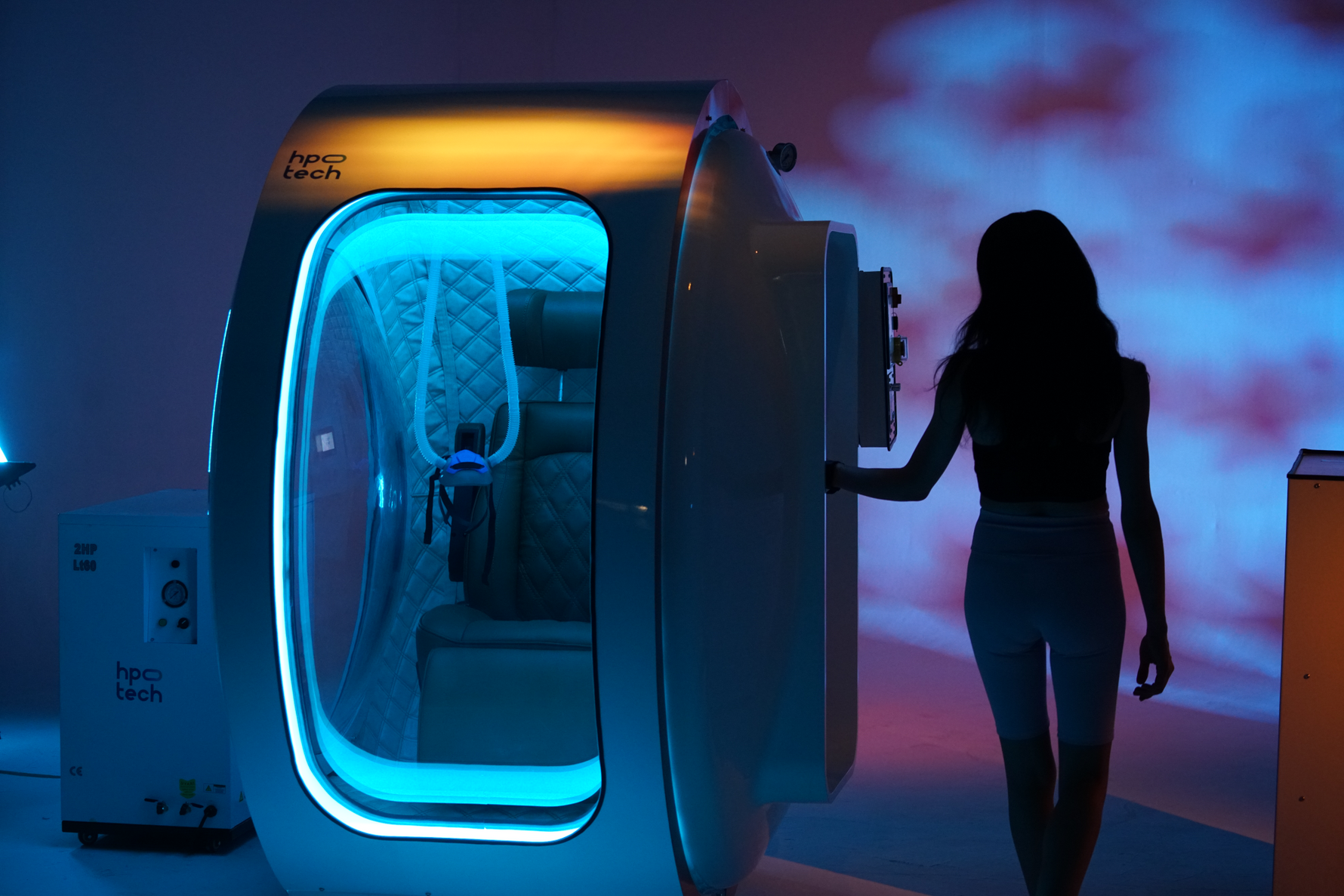

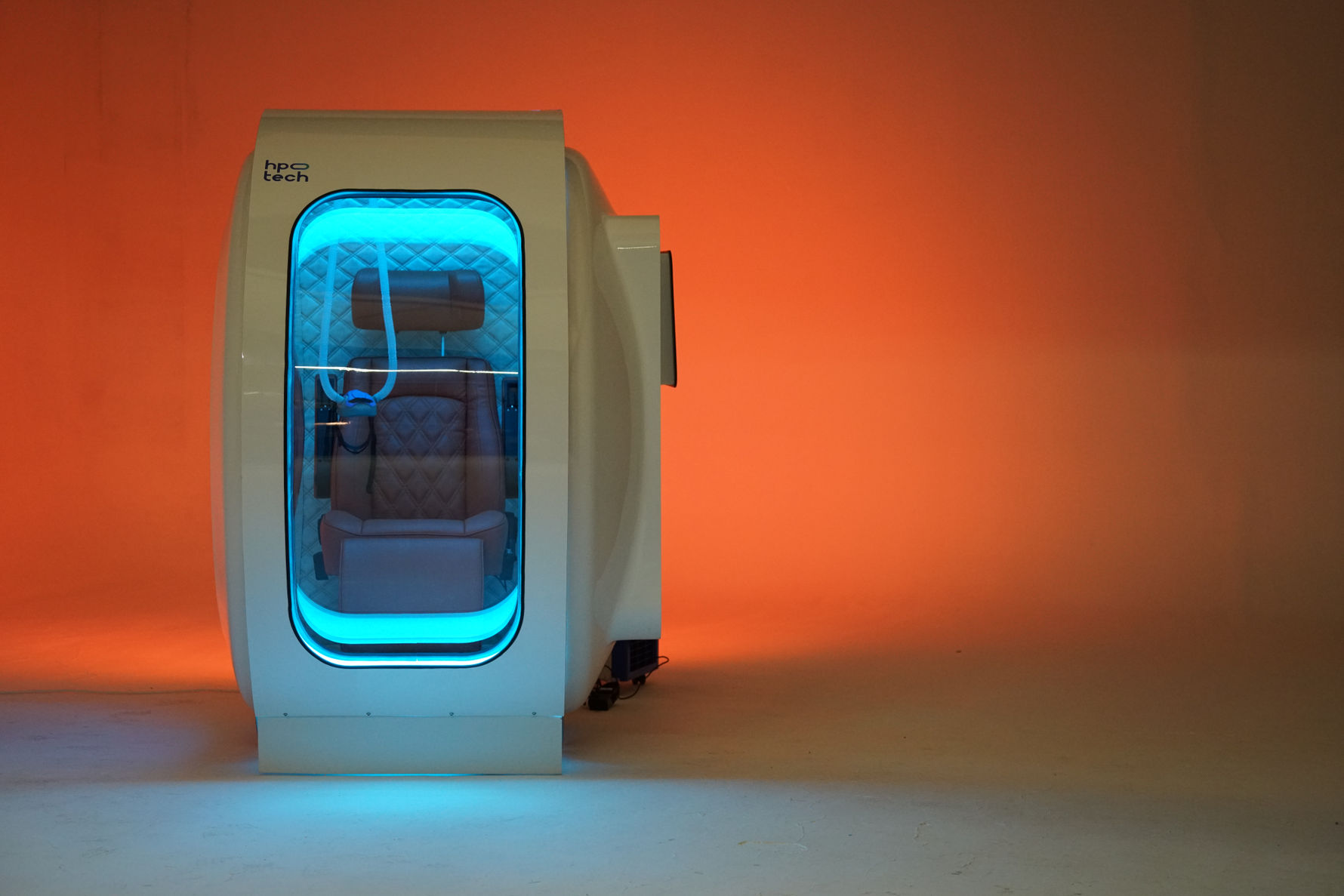

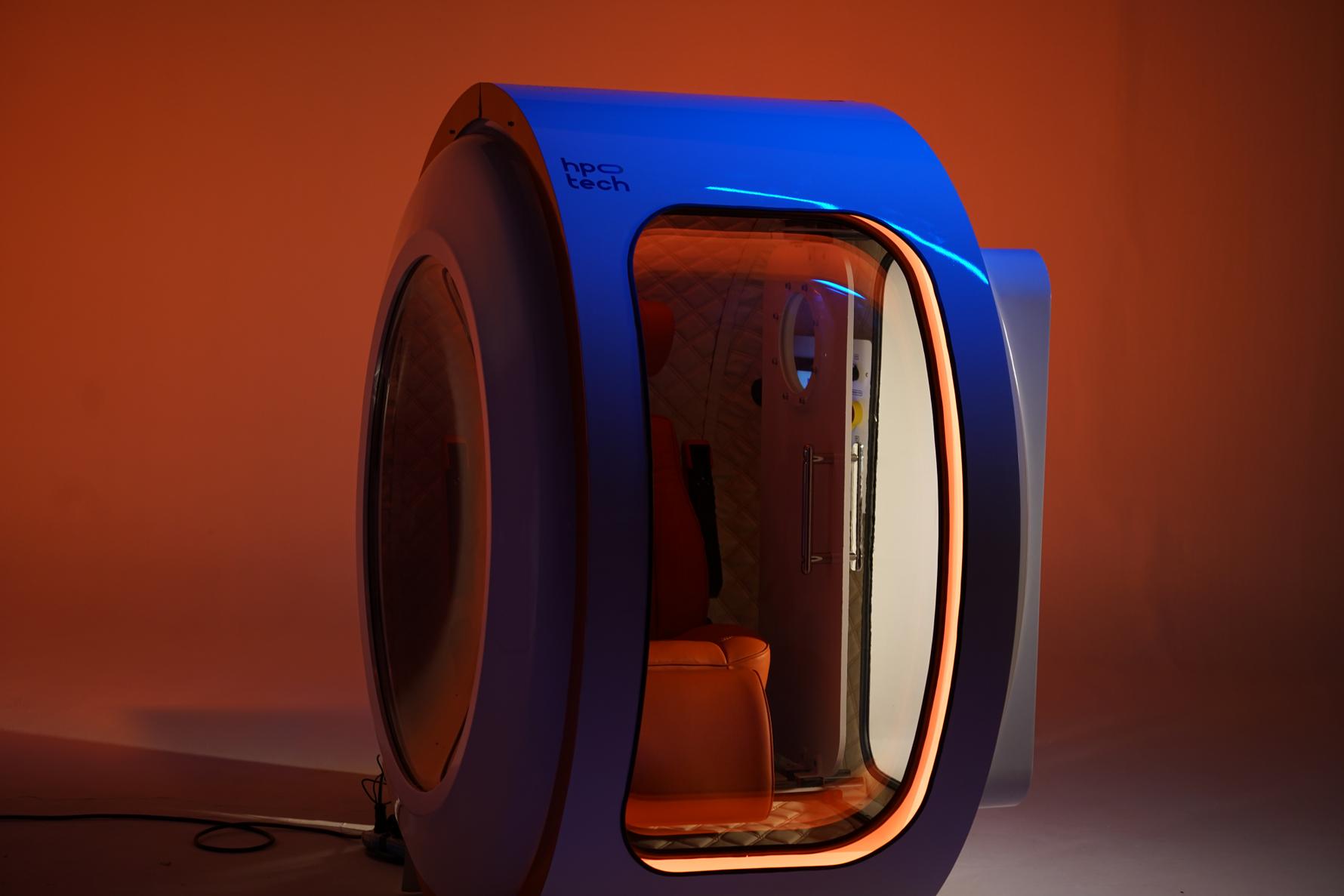

The ZEUGMA Hyperbaric Chamber is a modern monoplace HBOT system for single-user treatments. Compact, lightweight, and easy to install, it delivers reliable therapeutic results at 2.0–2.4 ATA. With panoramic windows, ergonomic seating, and advanced automation, ZEUGMA combines effective oxygen therapy with safety and comfort.

Key Benefits

• Single-user monoplace chamber (1 seat)

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• Compact design for clinics, wellness centers, and private use

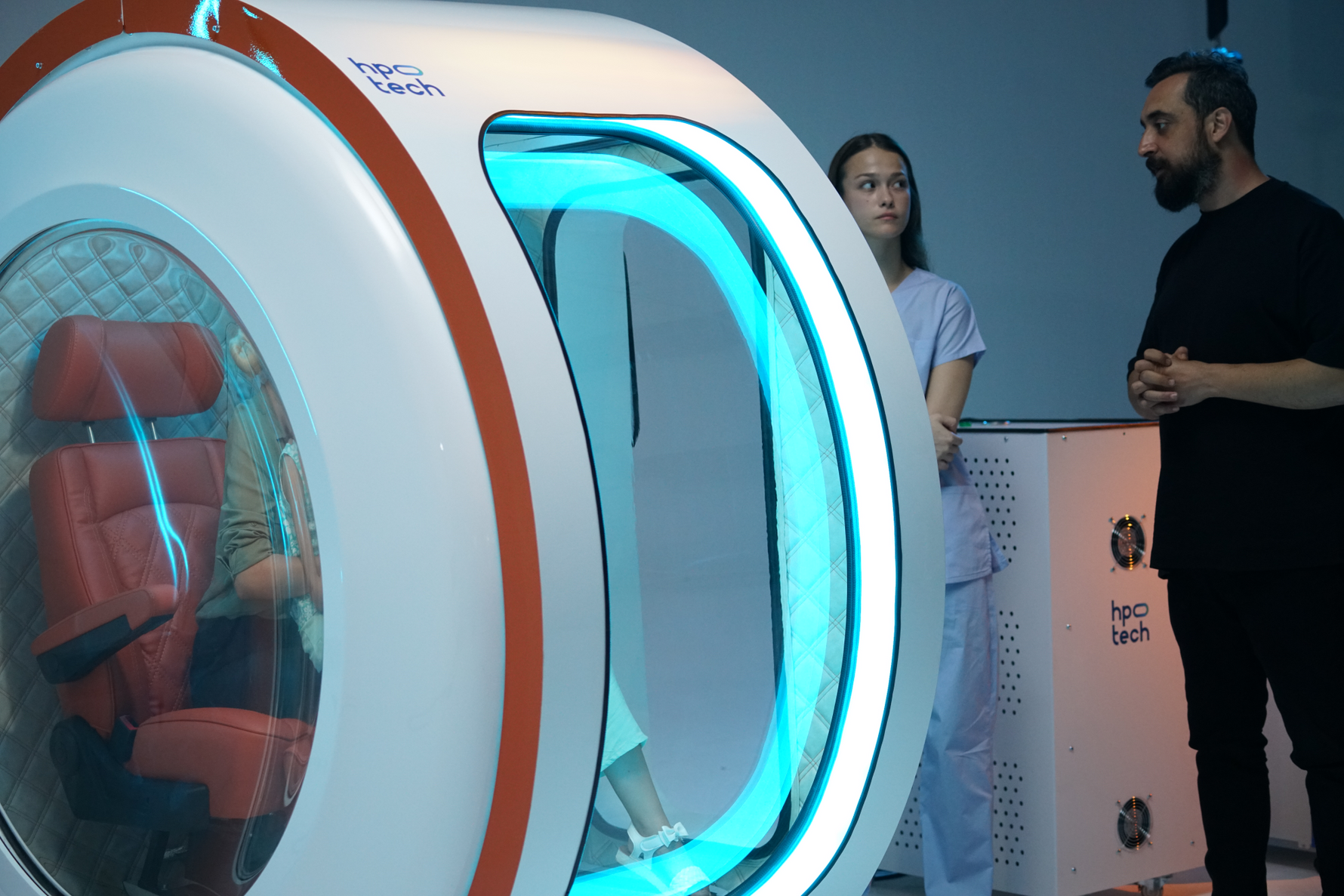

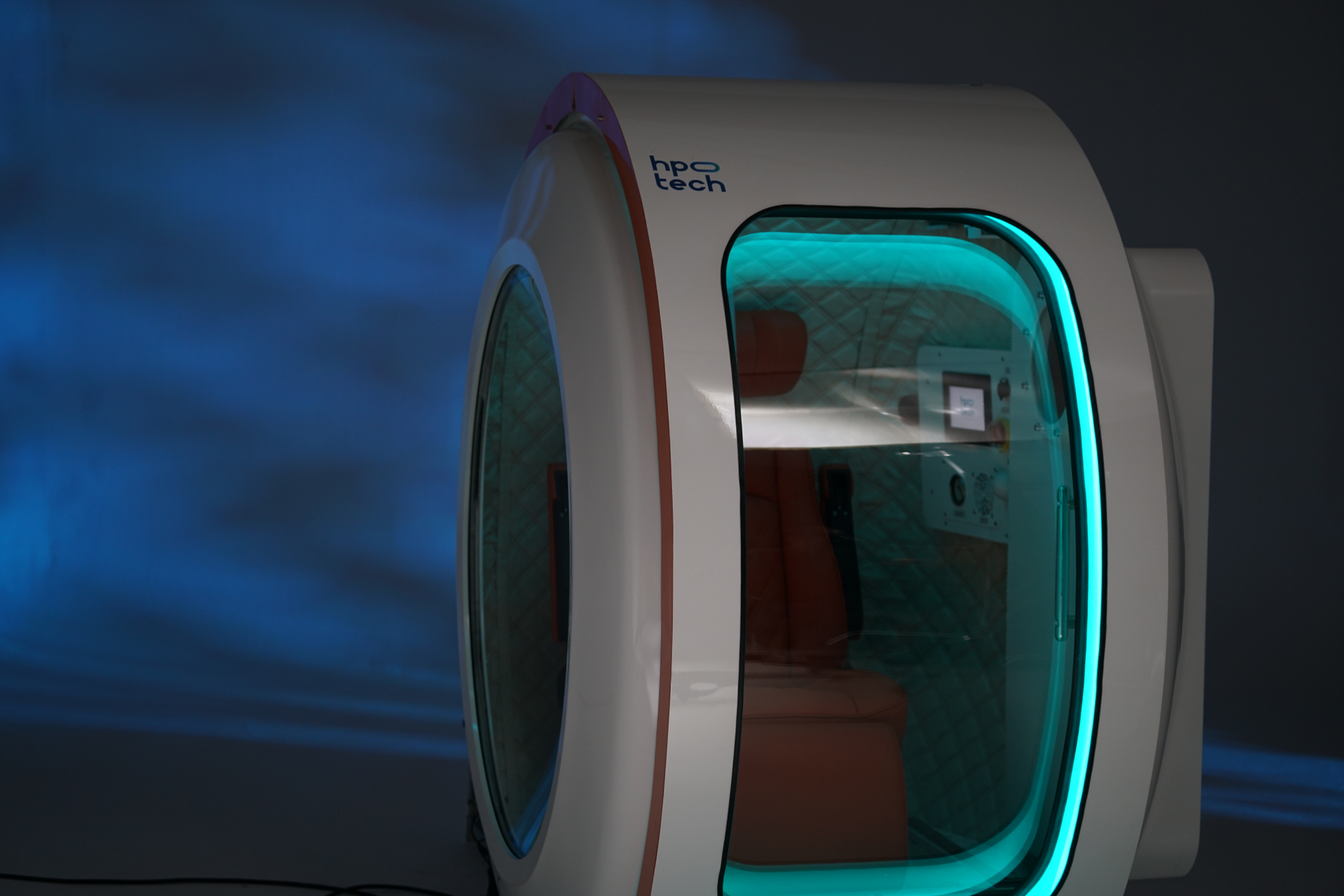

• Panoramic acrylic windows reduce confinement feeling

• Ergonomic eco-leather seat

• Automation system with PLC-based control

• Certified to international safety standards

Technical Specifications

• Capacity: 1 person

• Operating pressure: 2.0–2.4 ATA

• Weight: 350–400 kg

• External dimensions: 1344 mm (L) × 1987 mm (W) × 1858 mm (H)

• Internal length: 1620 mm

• Internal volume: 1.9 m³

• Material: Aerospace aluminum, cylindrical monoplace design

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

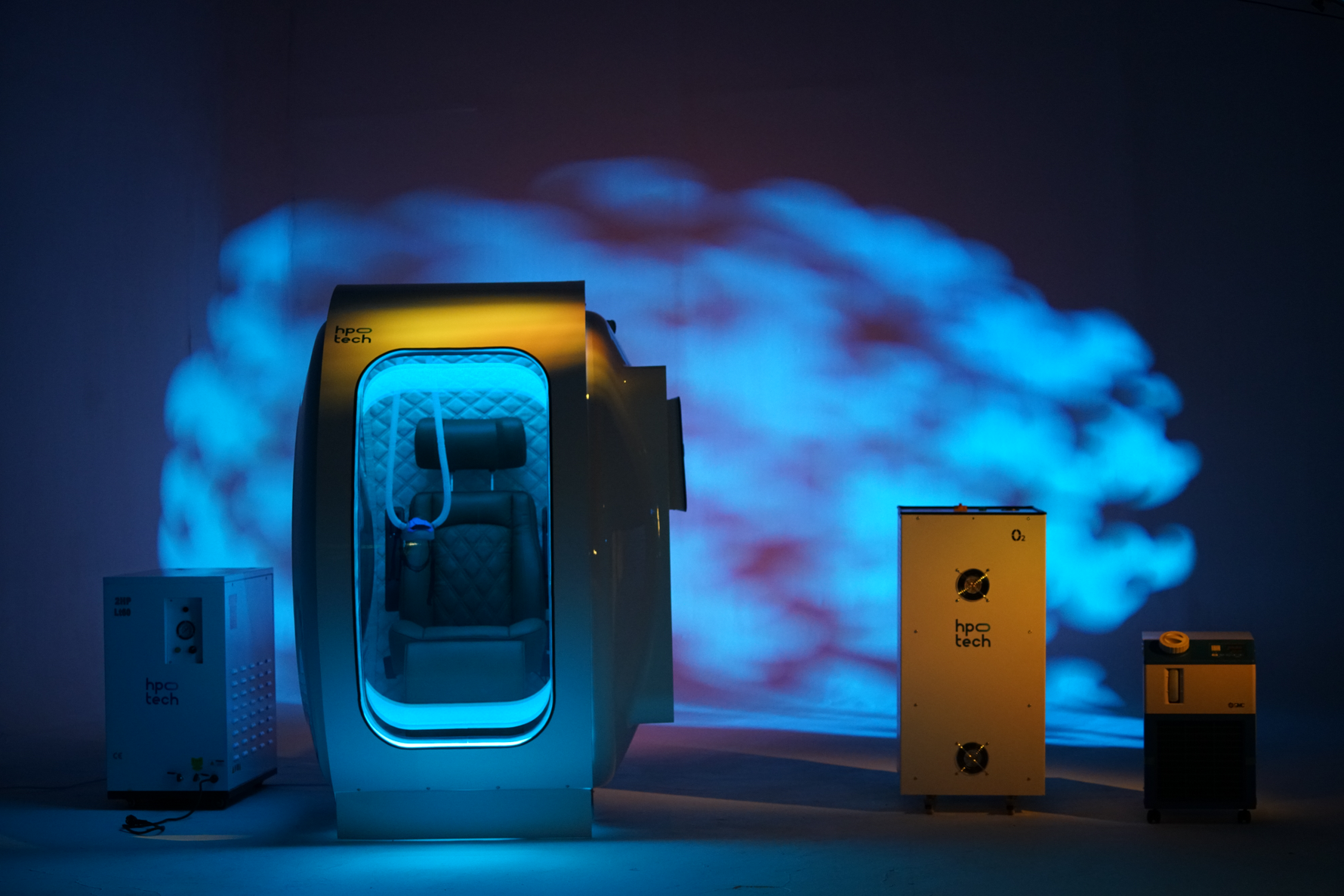

Included as Standard

• ZEUGMA Hyperbaric Chamber (1 seat monoplace)

• 1 Oxygen concentrator (90–93% purity, 1–20 LPM flow)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

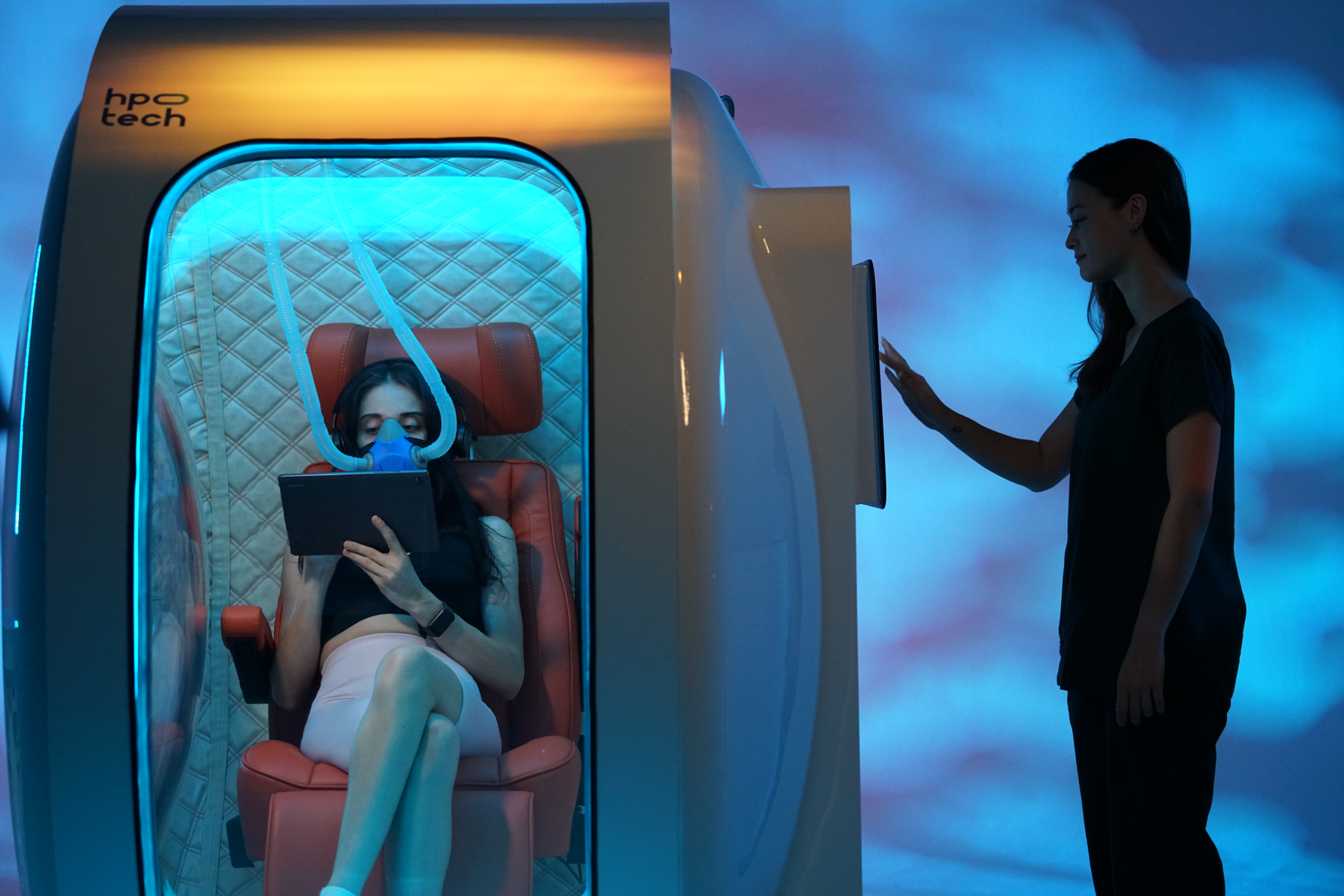

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

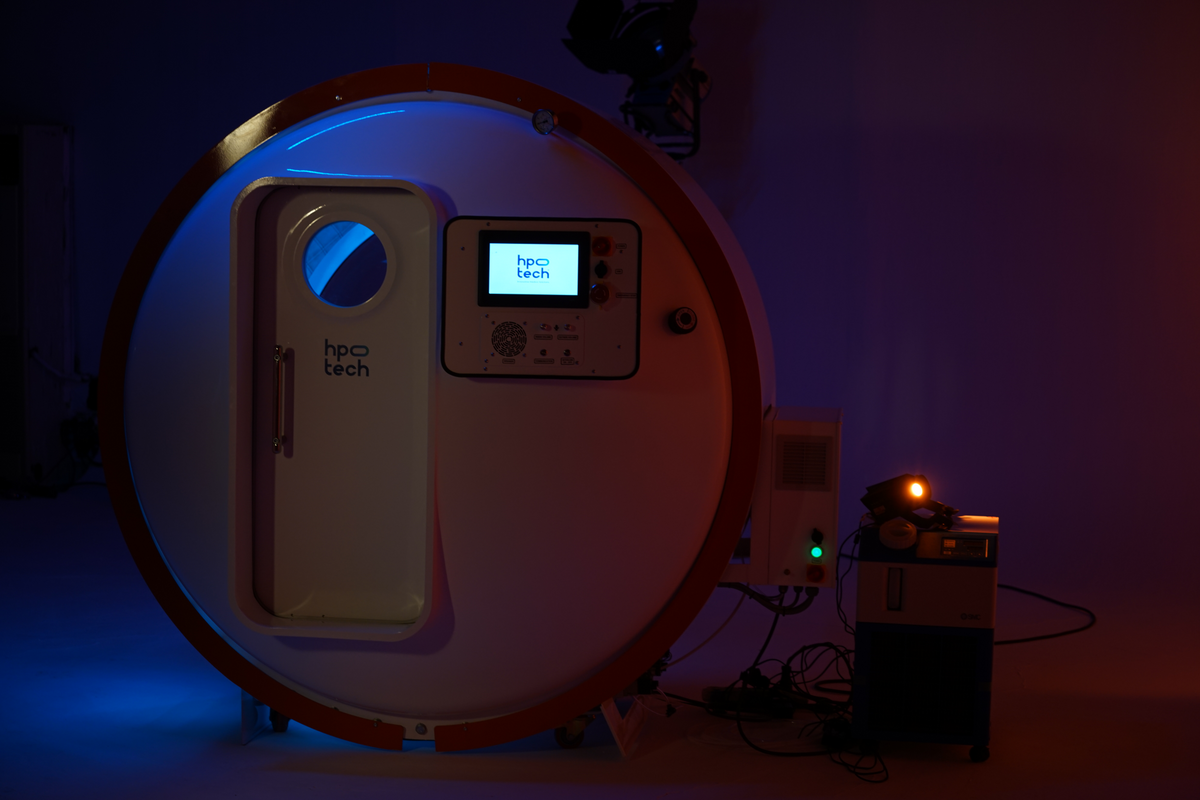

• Internal & external control panels

• Ergonomic eco-leather seat

• Standard panoramic acrylic windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury seat upgrade

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

ZEUGMA has been designed to maximize user comfort while maintaining clinical reliability. Large acrylic windows create a bright, open space. Ergonomic seating supports circulation and posture. Customers can select exterior paint colors, interior finishes, and branded details to match their facility.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose ZEUGMA?

The ZEUGMA Hyperbaric Chamber delivers proven HBOT performance in a compact, single-user design. With advanced automation, certified safety, and flexible customization options, it is a reliable choice for clinics, wellness facilities, and private users.

Compact. Safe. Effective. Customizable.
