Hyperbaric chambers

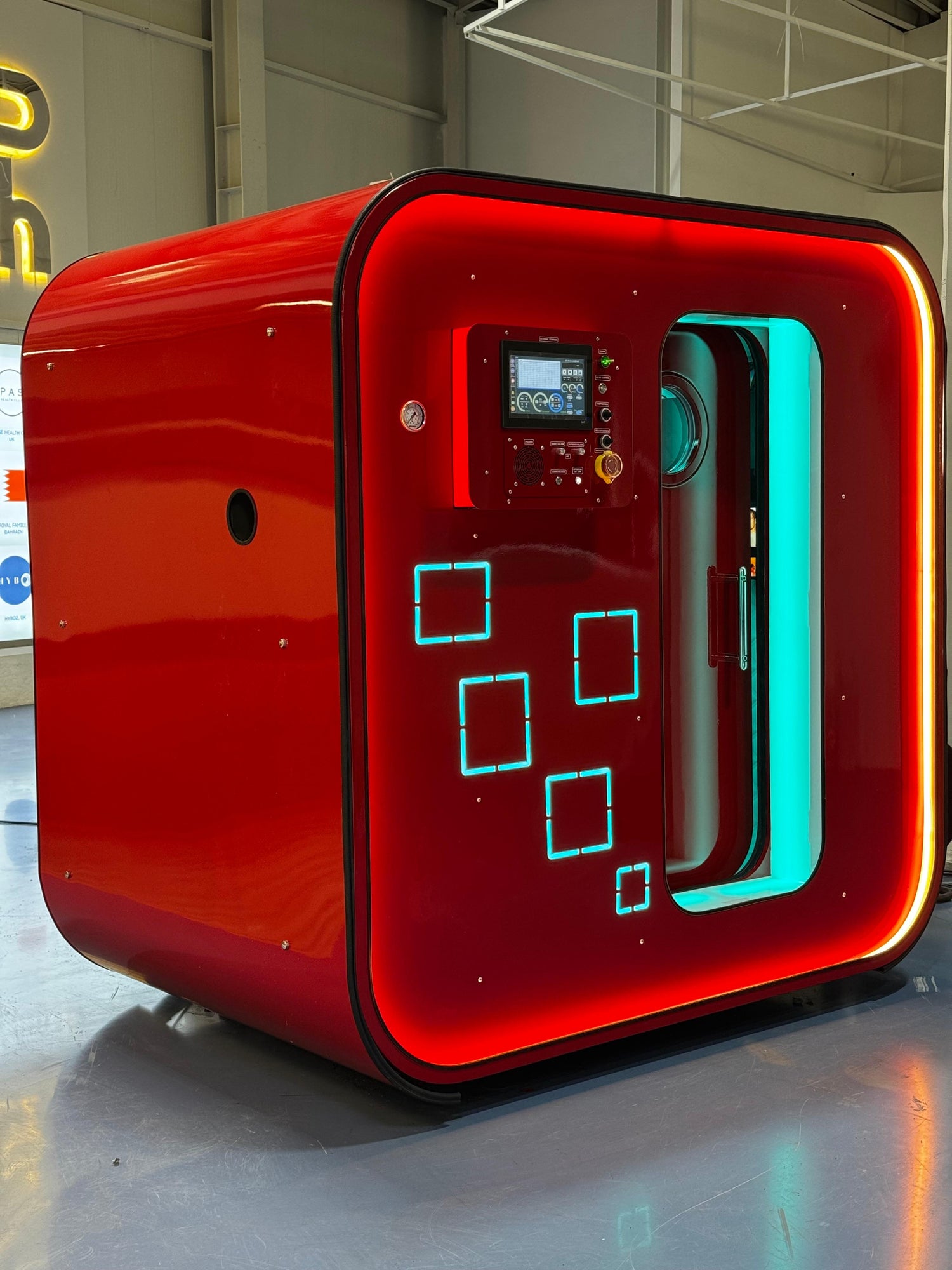

The MATRIX Hyperbaric Chamber represents a new generation of HBOT systems – cube-shaped, spacious, and engineered for maximum inclusivity. Built with heavy-duty steel and rounded corners, it combines futuristic design with powerful therapeutic performance. MATRIX operates at 2.0–3.0 ATA and is available in both single-user and dual-user configurations, including an optional wheelchair-accessible version – one of the very few hyperbaric chambers in the world with this capability.

Key Benefits

• Cube-shaped, spacious design

• Operating pressure: 2.0–3.0 ATA

• Weight: 1600–1800 kg

• Capacity: 1–2 persons

• Optional wheelchair-accessible version

• Ergonomic eco-leather or luxury seating

• Panoramic acrylic windows for comfort

• PLC-based automation and control system

• Certified safety and durability

Technical Specifications

• Capacity: 1–2 persons

• Operating pressure: 2.0–3.0 ATA

• Weight: 1600–1800 kg

• Dimensions: Modular cube design (customized to facility); exact size and installation requirements provided upon request

• Material: Heavy-duty steel with rounded corners

• Ventilation rate: 125–400 LPM

• Emergency decompression: 2.0 ATA → 1.0 ATA in 90 seconds

Included as Standard

• MATRIX Hyperbaric Chamber (1–2 seat, cube design)

• 1 or 2 Oxygen concentrators (90–93% purity, 1–20 LPM flow each)

• 1 Air compressor (564 LPM)

• 1 Air cooler (1500 W, temp. control 5–40 °C)

• 10 BIBS masks (Built-In Breathing System) with regulators and hoses

• PLC-based automation software

• Internal & external control panels

• Ergonomic eco-leather seats (1 or 2 units depending on configuration)

• Panoramic acrylic windows

• Emergency stop and manual decompression valve

• UV-C disinfection system

Optional Upgrades

• Wheelchair-accessible configuration (unique USP)

• Additional acrylic windows

• CO₂ sensor

• Patient monitoring system (EEG, ECG, TCOM, blood pressure)

• Luxury seating (Maybach-style, Alcantara, premium leather)

• Entertainment systems (TV, tablets, LED lighting)

• Branding applications (logos, exterior details)

• Interior finishes in different tones

Color & Branding Options

• Exterior paint customization available

• Interior finishes available in multiple tones

• Branded details and exterior logos available on request

Comfort & Customization

MATRIX is designed to maximize space and inclusivity. Its cube form creates a more open environment than cylindrical chambers, while panoramic windows reduce confinement. Optional luxury seating, branding, and entertainment systems allow facilities to fully adapt the chamber. The wheelchair-accessible version ensures accessibility for users who cannot enter conventional hyperbaric chambers.

Safety & Monitoring

• Certifications: ASME-PVHO, PED, CE, ISO, NFPA

• Emergency stop and decompression systems

• Continuous monitoring of pressure, oxygen flow, and treatment duration

• Optional CO₂ and patient monitoring upgrades

• Automatic ventilation and UV-C disinfection

• Intercom for operator-patient communication

Pricing

Pricing is available on request. Please contact us for a quotation tailored to your configuration, installation, and selected upgrades.

Why Choose MATRIX?

The MATRIX Hyperbaric Chamber combines futuristic design, robust engineering, and inclusivity. With its cube-shaped spacious interior, customizable features, and optional wheelchair access, MATRIX sets a new standard for modern HBOT systems.

Futuristic. Spacious. Accessible. Customizable.
